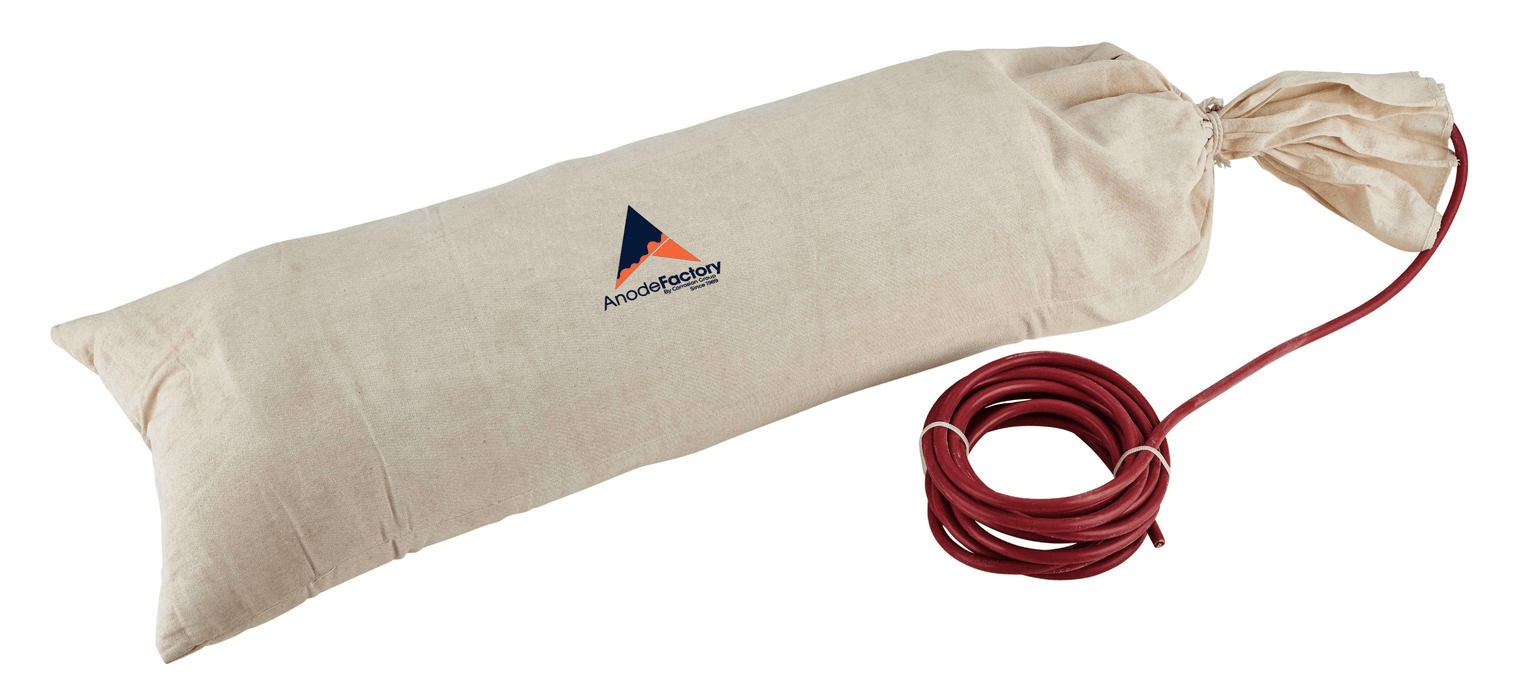

Magnesium Anode Bag 7.7KG/17lb 1.7V, INCL 32 ft. of 8 gauge red XLPE/PVC cable, for underground propane tanks and pipes
Article: 32002
Original part number: 17D3
American Society for Testing Materials (ASTM) Standard B843
Anode bags prevent your propane tank, wires above and below ground from corrosion. By using an anode bag, we extend the lifespan of these products. We deliver worldwide, If you have any questions, please check the product description and FAQ below or contact us.
| PCS | Discount | Price |
|---|---|---|
| 5 | 5 % | £517.75 /st |
| 10 | 10 % | £490.50 /st |
| 20 | 15 % | £463.25 /st |
| 50 | 20 % | £436.00 /st |
Product Description
Magnesium Anode Bag 17lb/45lb 1.7V, INCL 32 ft. of 8 gauge red XLPE/PVC cable
Looking for a smaller size? Checkout the 9lbs version here
With the right amount of anodes you can provide complete cathodic protection to your underground installation. Done correctly, this will provide immunity to corrosion for tanks, piping, sheet pilings, etc. Meaning that your underground object doesn't need to be changed because of corrosion for many years to come.
- Net weight: 7.7 KG / 17lb
- Gross weight: 20 KG / 45lb
- Material: Magnesium
- Cable: AWG 8, insulated copper wire. Can easily be shortened to desired length
- Type: High Potential, 1.7V, M1C
- Cast specs: Cast to meet the American Society for Testing Materials (ASTM)Standard B843
Of all available anode materials, magnesium is the one that has the highest driven voltage. Because of this,
Magnesium anodes are used advantageously in soil and water with high resistivity.
Normally, there are two different qualities being used: standard potential (1.5V) and high potential (1.7V).
When the anodes are designated for underground installation, we delivered them as standard
with a backfill mix of bentonite, as well as 32ft long red XLPE / PVC 8 AWG cable.
The cable connection is embedded in epoxy for extra long durability and current discharge reasons.
Our Magnesium anode bag for underground tanks:
- Protects your underground propane tank from corrosion (cathodic protection)
- Includes canvas bag, metal particle filling, and connection wire
- 1 bag for 500 gallon tank, 2 bags for 1000 gallon tank
- Bare weight 17lbs, with surrounding filling 40lbs
Application recommendations
Anodes made from magnesium can protect underground tanks under most soil conditions. The High potential alloy is very effective. Based on conservative design assumptions, the table below provides recommendations for various tank sizes. This chart covers soil conditions up to 10,000 ohm-centimeter resistivity. Resistivities higher than 10,000 ohm-centimeter represent parched soils. Verification of soil resistivity can be performed through soil analysis. If there is no effective external coating on the tank or soil resistivity exceeds 10,000 ohm-cm, contact us for design recommendations.
|
Soil Type |
Fertile Soils, Clay,Sandy Loam |
Sand, Gravel, Rocky Areas |
||||
|
Tank Cap. |
5 to 5000 ohm-cm |
5000 to 10000 ohm-cm |
||||
|
(gal.) |
Size |
Qty. |
Alloy |
Size |
Qty. |
Alloy |
|
120 |
9# |
1 |
High potential |
9# |
1 |
High potential |
|
150 |
9# |
1 |
High potential |
9# |
1 |
High potential |
|
250 |
9# |
1 |
High potential |
9# |
2 |
High potential |
|
325 |
9# |
1 |
High potential |
9# |
2 |
High potential |
|
500 |
17# |
1 |
High potential |
9# |
2 |
High potential |
|
1000 |
17# |
2 |
High potential |
9# |
4 |
High potential |
|
1500 |
17# |
2 |
High potential |
9# |
4 |
High potential |
|
2000 |
17# |
3 |
High potential |
9# |
6 |
High potential |
FAQ
- Q: How long does an anode bag last?
A: With optimal use, our anode bags can last up to 5 years. However, the lifespan can vary depending on environmental conditions, including the aggressiveness of the soil or water they are placed in. Regular inspections can help assess the condition of the anode bag and its remaining lifespan.
- Q: How do you install an anode bag for a propane tank?
A: Installing an anode bag for a propane tank involves several steps. First and foremost, the area around the tank should be cleared. The anode bag is then placed in a hole dug near the tank. It is then connected to the tank with a special cable, ensuring that the connection is secure and solid. The hole is then filled back in, ensuring that the anode bag remains in contact with the surrounding soil.
- Q: What are anode bags used for?

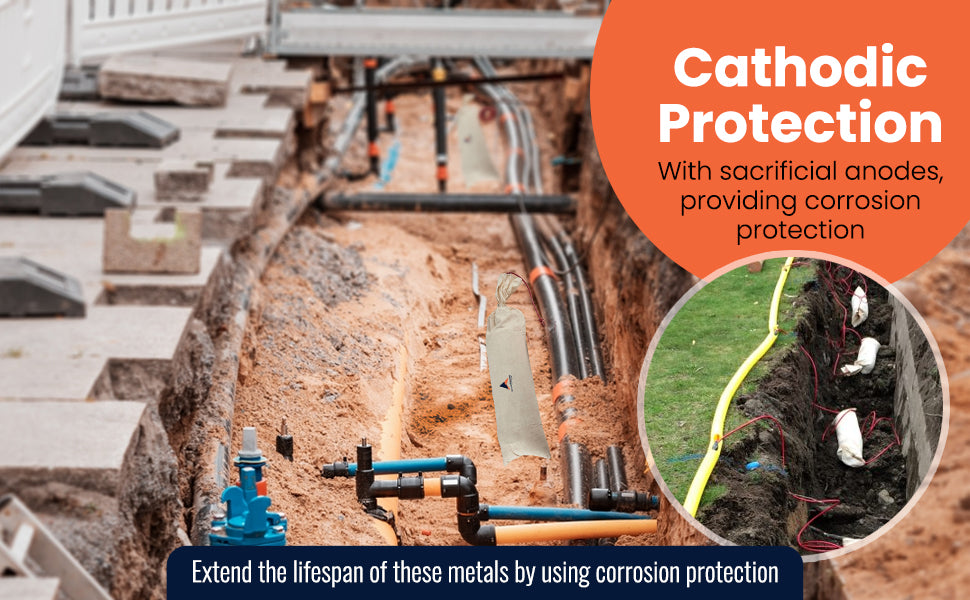

A: Anode bags are used for cathodic protection. They protect various metal structures such as propane tanks, underground pipes, buried steel assets, docks, piers, and fire hydrants against corrosion. By producing a small electric current, anode bags counteract the corrosive electrical activity that leads to rust and degradation.
- Q: What is an anode bag?
A: An anode bag is a type of sacrificial anode used for cathodic protection. It is a bag filled with a reactive metal, usually magnesium, that is connected to a metal structure to protect it against corrosion. When placed in the soil or water near the structure, it produces a protective electric current that prevents the metal from corroding.
